Komet’s contribution for your aligner therapy.

Innovative instruments from the dental expert for optimum and safe treatments.

header-schiene header-tools

Quality-products by Komet for optimum interproximal enamel reduction.

The treatment of misaligned teeth with braces or aligners often contains the interproximal reduction of enamel. Komet offers a considerable portfolio, providing everything you need for a successful treatment – from manual honeycomb strips to oscillating discs.

Greater safety during orthodontic stripping.

Take advantage of Komets solution for mechanical stripping by using the OS30 orthodontic handpiece in combination with the OS segment discs – made for efficient interproximal enamel reduction!

Problems that arise with hand instruments (diamond strips), like too little space for grinding movements or jamming, are only partly solved with rotary diamond discs. Although stripping is facilitated considerably by using rotary discs, there are still disadvantages like the risk of damaging soft tissue and an obstructed vision when using a discguard.

Also, compared to rotary discs with full radius and diameters of up to 2.2 cm, which must be used with a disc-guard, the segment disc offers the best features for stripping in hard-to-reach areas. Thanks to optimal vision and excellent grinding efficiency, the OS disc with its design is an innovative instrument leading to absolutely convincing results.

Out of the optimal coordinated system, the oscillating segment discs stand out through accurate removal of dental enamel, excellent view on the treatment site and precise handling throughout the treatment. All this minimizes the risk of injuring soft tissue, so that both you and your patients benefit from a safe treatment.

Advantages:

  • Minimal risk of injury to the soft tissue due to oscillating operation
  • Optimal view and excellent removal of debris thanks to the honeycomb design
  • Ring and laser markings on the shank for easier identification

Take a deep dive:
For further information click: Save time and effort during interproximal enamel reduction: With the new set from Komet. › Komet Dental

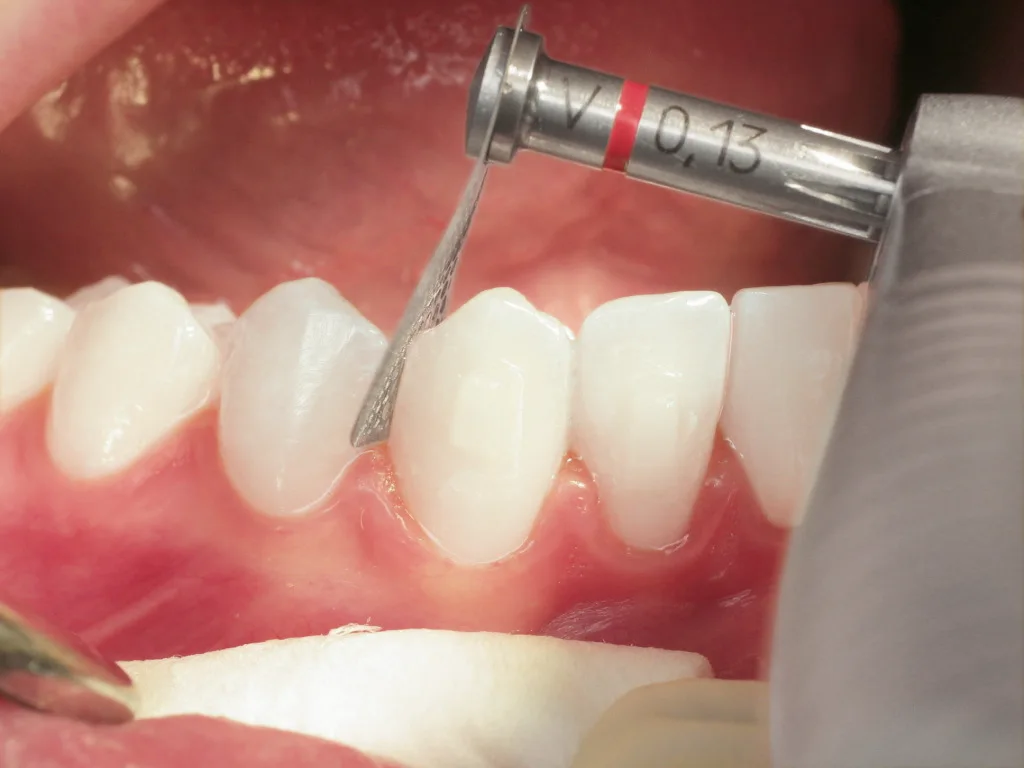

anw_asr_03

IPR 0,13 mm, instruments: os disc (REF-No.OS1FV.000.140) + OS30 handpiece

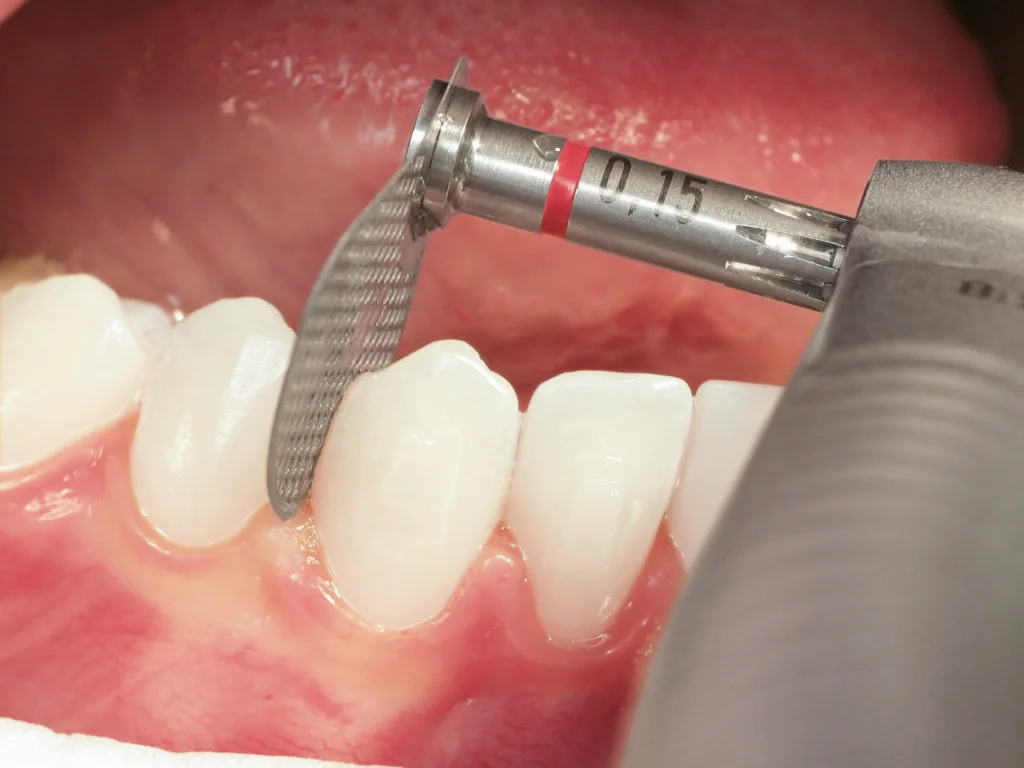

anw_asr_04

IPR 0,15 mm, instruments: os disc (REF-No.OS15FH.000.140 ) + OS30 handpiece

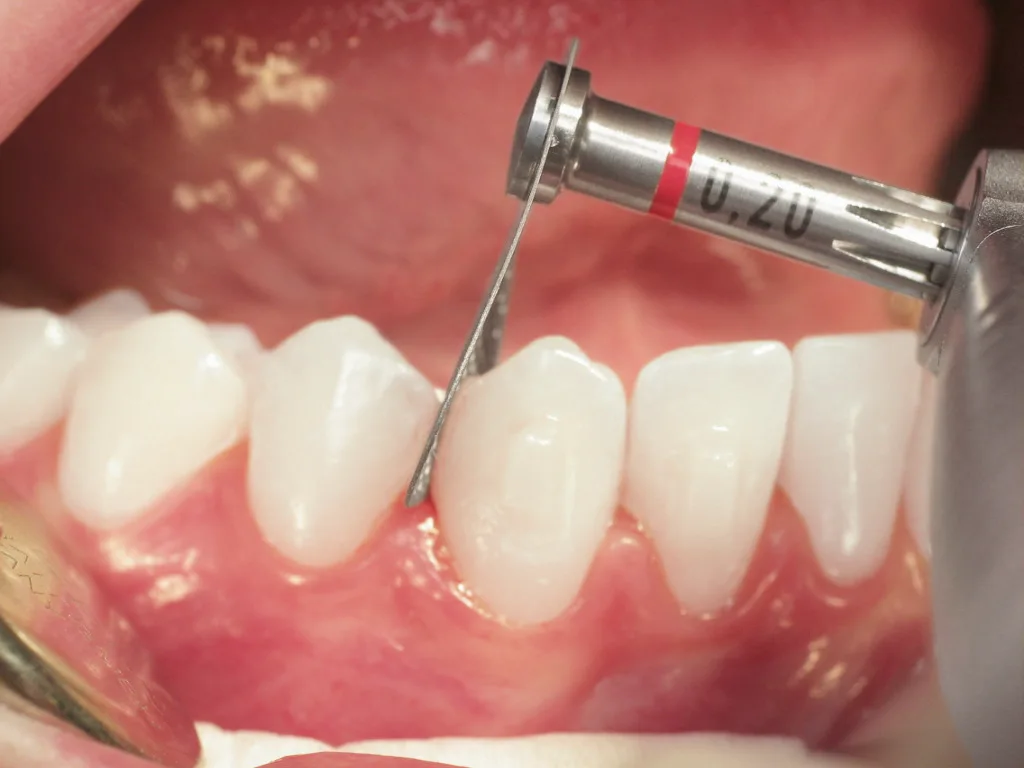

anw_asr_05

IPR 0,20 mm, instruments: os disc (REF-No.OS20F.000.140) + OS30 handpiece

anw_asr_06

IPR 0,25 mm, instruments: os disc (REF-No.OS25M.000.140) + OS30 handpiece

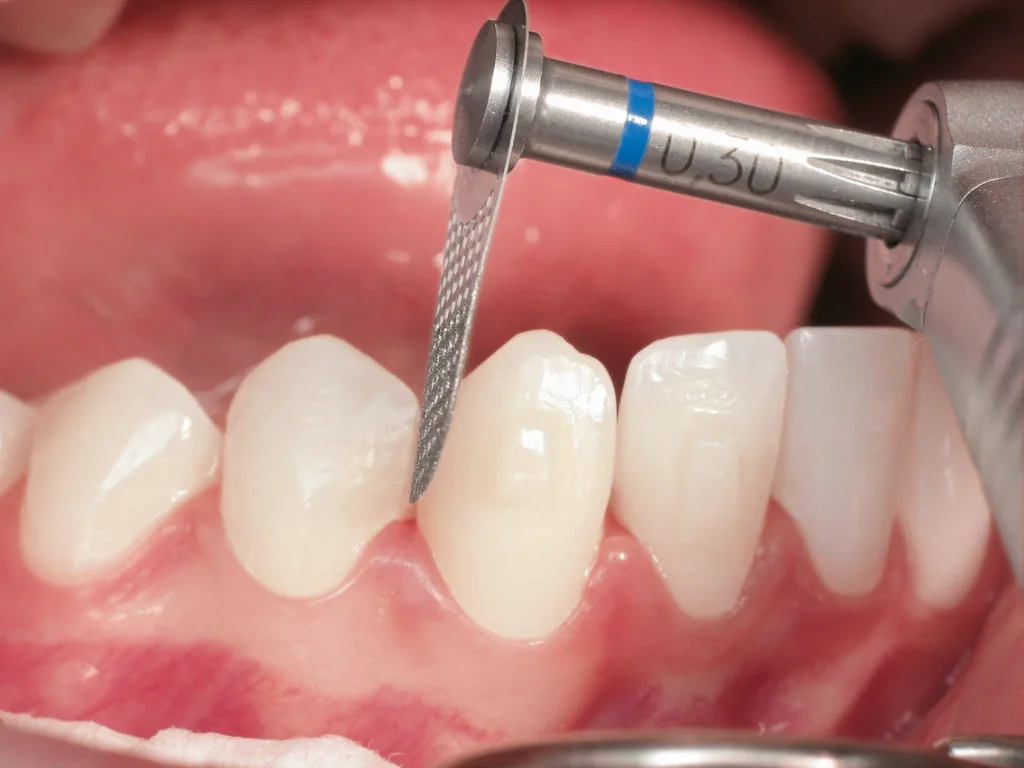

anw_asr_07

IPR 0,30 mm, instruments: os disc (REF-No.OS1M.000.140) + OS30 handpiece

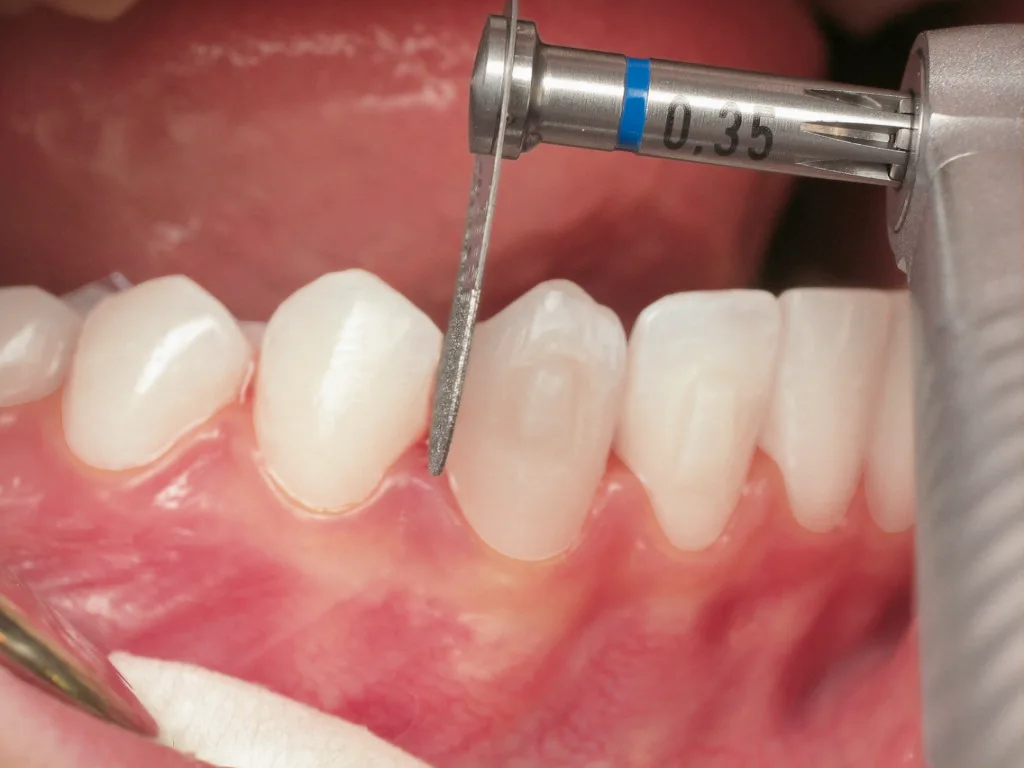

anw_asr_08

IPR 0,35 mm, instruments: os disc (REF-No.OS35M.000.140) + OS30 handpiece

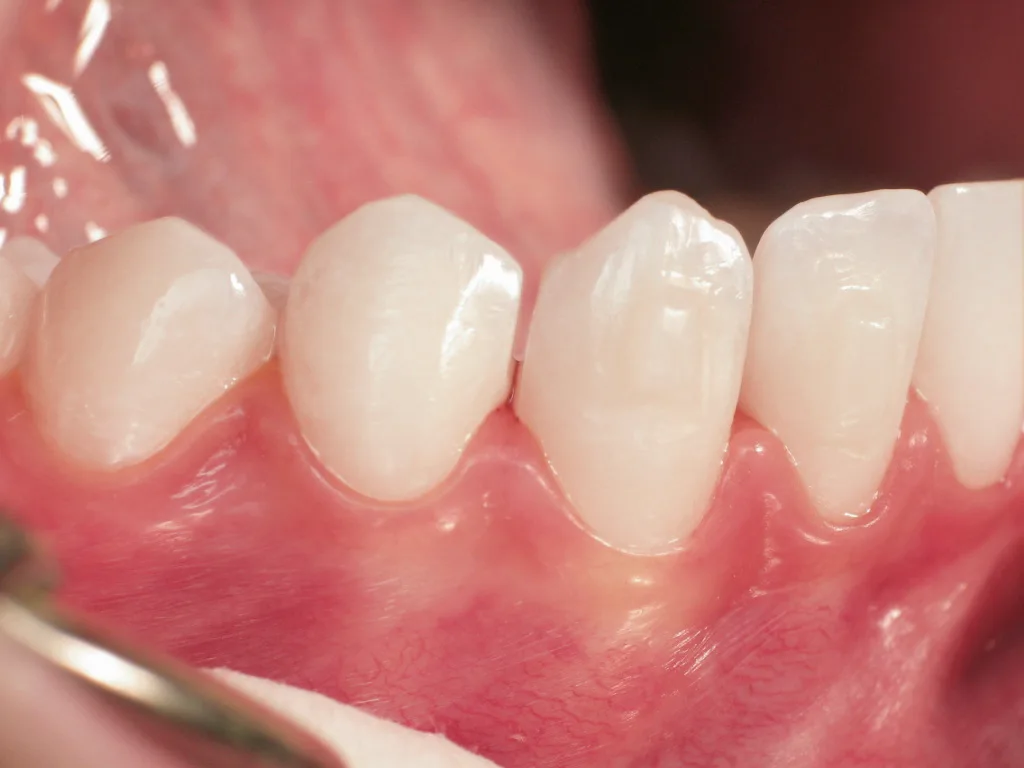

anw_asr_09

End result of IPR 0,35 mm

Komet’s latest OS disc for IPR at the first point of contact

Developed for dentists and patients.

Developed for dentists and patients. Recently, Komet extended its portfolio of oscillating discs. The latest addition now allows the safe removal of enamel from the very first point of contact. Dentist benefit from the uncoated center of the new disc as it facilitates the initial separation even in close-set teeth.

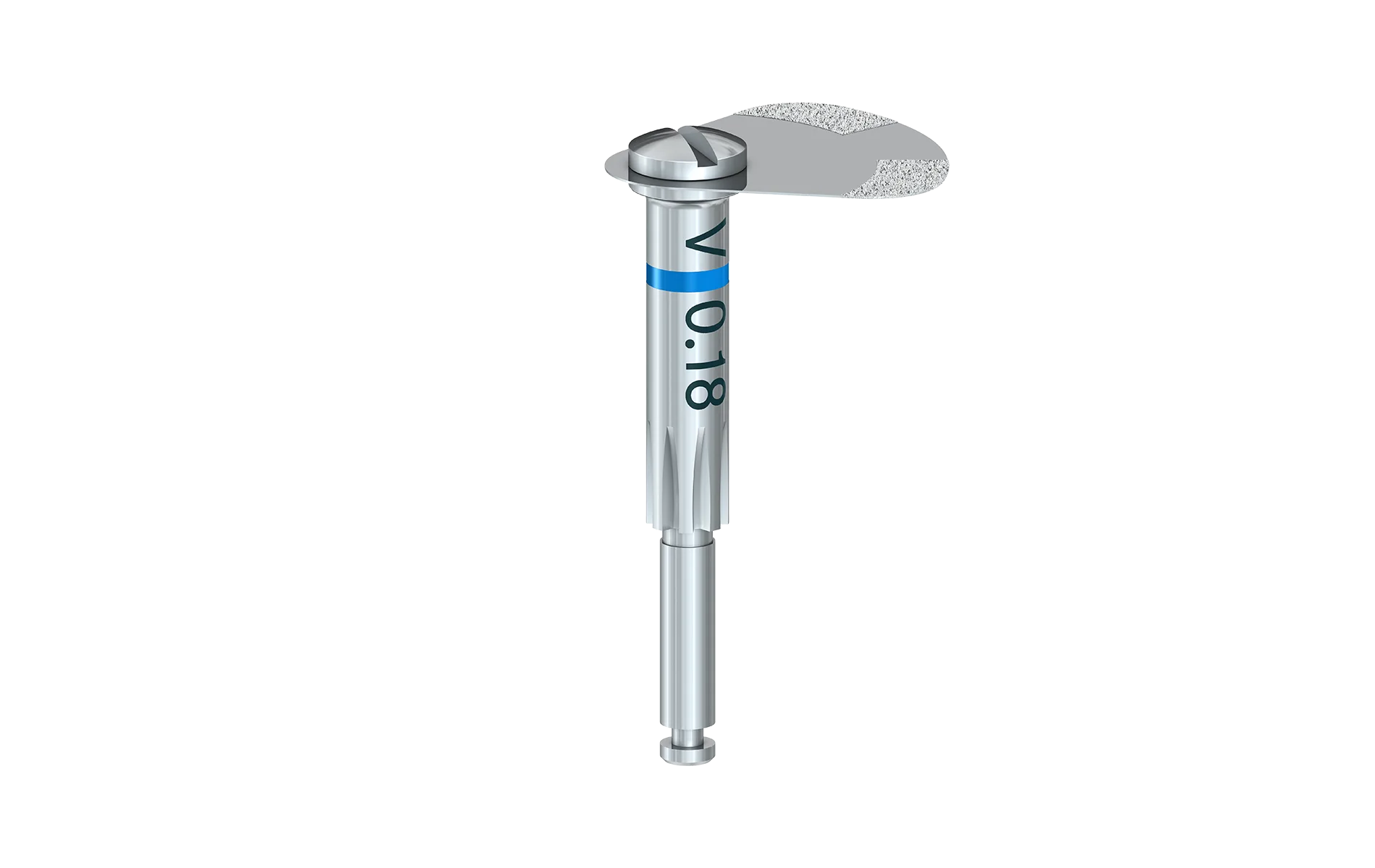

os18mve

Mechanical stripping with Komet‘s OS System: Hero Products

Below you will find our hero products for mechanical interproximal enamel reduction. Click on the image for more information about the product.

OS30

OS30

Category: Handpiece

Application: Interapproximal enemal reduction (mechanical)

OS1F

OS1F

Category: Oscillating disc

Application: Interapproximal enemal reduction (mechanical)

OS15FV

OS15FV

Category: Oscillating disc

Application: Interapproximal enemal reduction (mechanical)

OS18MVE

OS18MVE

Category: Oscillating disc

Application: Interapproximal enemal reduction (mechanical)

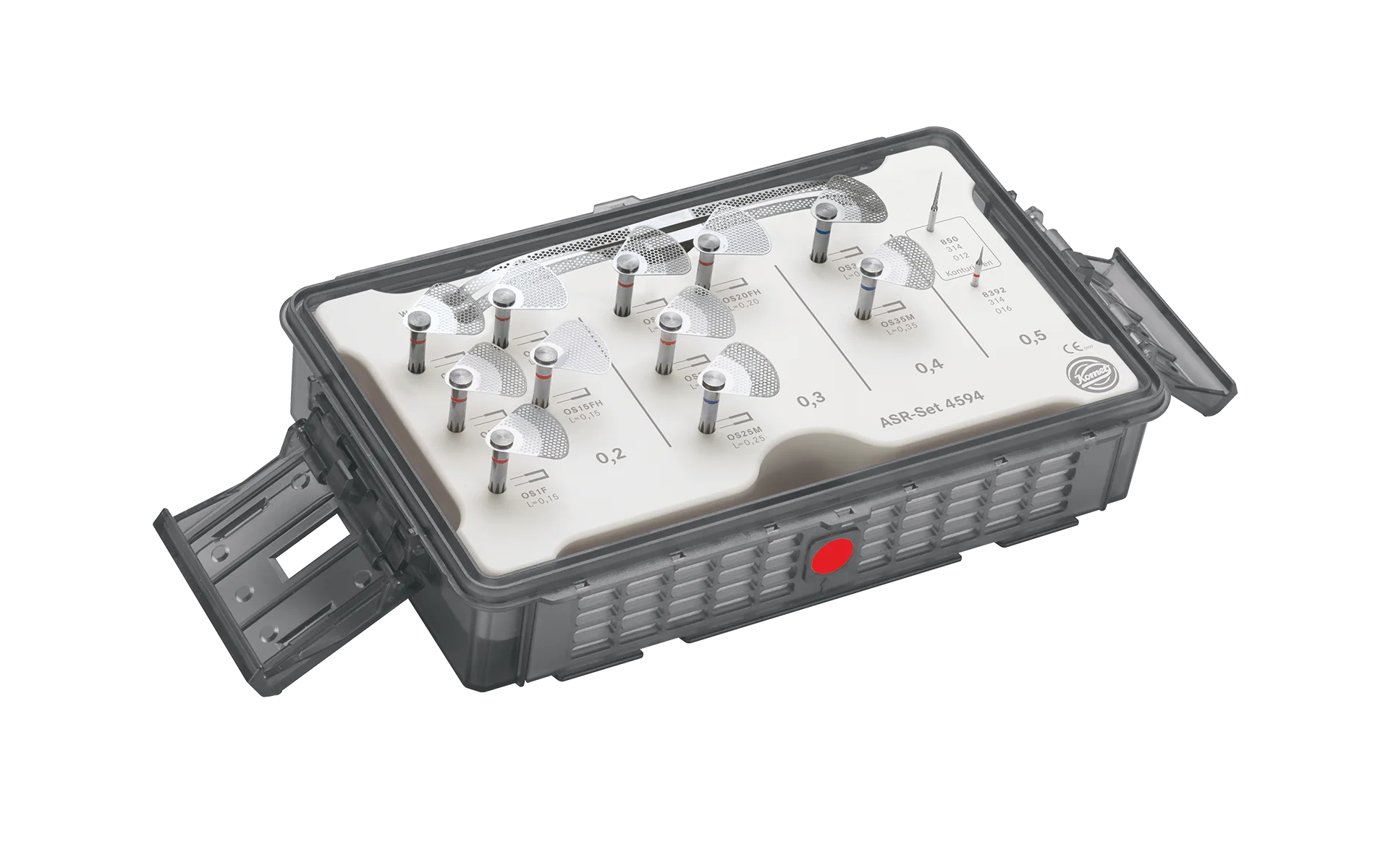

ASR Set 4594

ASR Set 4594

Category: Expert Kit

Application: Interapproximal enemal reduction (mechanical)

Sonic tips for stripping and shaping

With the sonic stripping tips, it is thus possible to perform unilateral (mesial or distal) enamel removal on both front and back teeth under conditions of absolute safety and respect for anatomy and without damaging the neighboring tooth.

Unlike reciprocal files, abrasive strips and rotary instruments, Stripping tips allow truly homothetic removal of enamel and, most importantly, do not affect gums and papillae.

Not only orthodontics with sonic tips for stripping and shaping. With these proximal surface instruments, stripping prior to crown preparation or rounding interproximal transitions along the preparation margin during cavity preparation becomes a fast and safe operation. Coated with diamond grit on one side only, these instruments can effectively shape proximal surfaces in cases of composite fillings in a short time. Straight tips ("Strip") and convex tips ("Shape") are available, and the coating is only on one side, "M" for mesial surfaces and "D" for distal surfaces.

Sonic Tips Products

Mechanical stripping with Komet‘s Sonic Tips: Hero Products

Below you will find our hero products for mechanical interproximal enamel reduction with sonic tips. Click on the image for more information about the product.

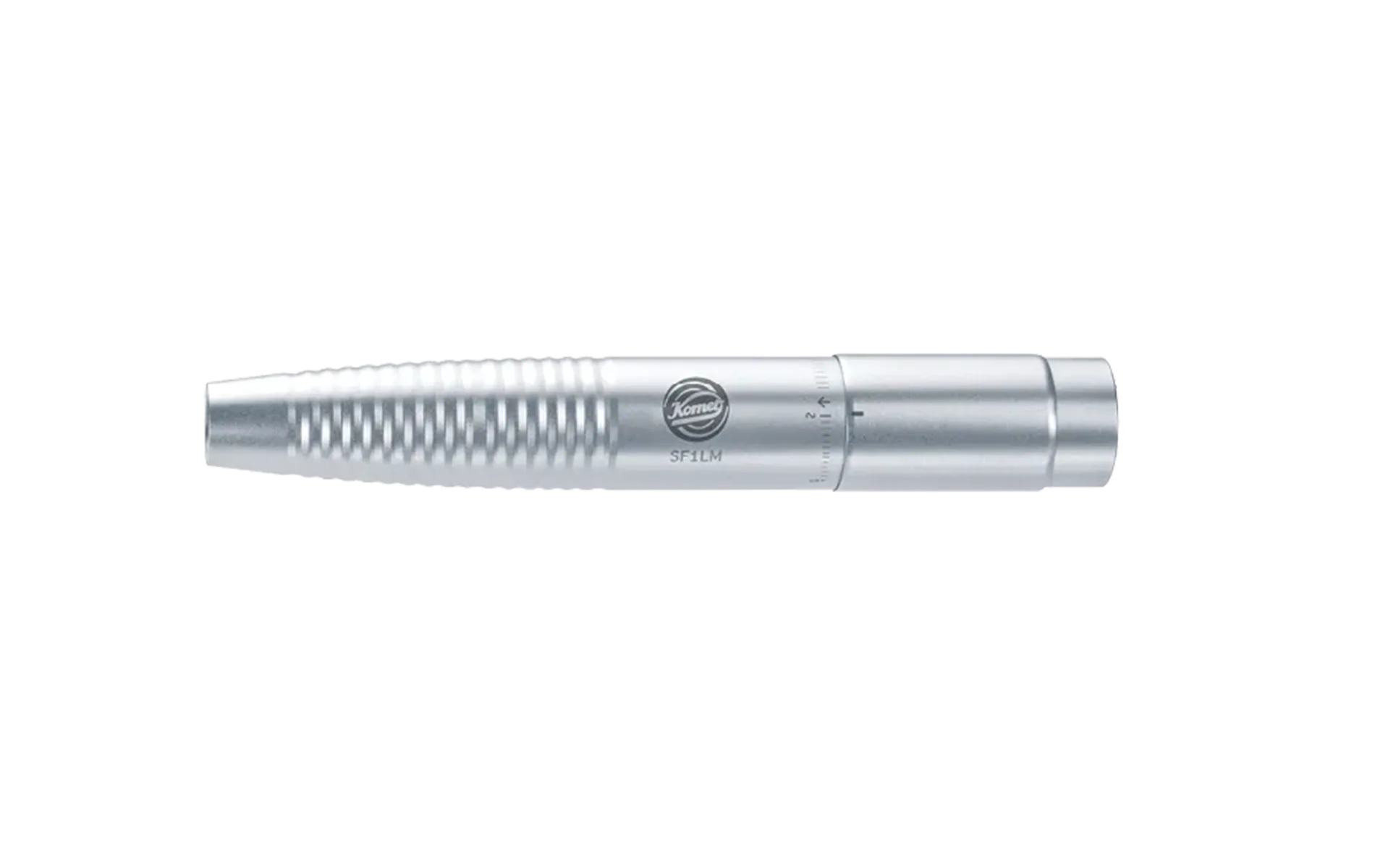

SF1LM

SF1LM

Category: Handpiece

Application: Interapproximal enemal reduction (mechanical)

SFD3F

SFD3F

Category: Sonic Tip

Application: Interapproximal enemal reduction (mechanical)

SFM1F

SFM1F

Category: Sonic Tip

Application: Interapproximal enemal reduction (mechanical)

Komet’s rotating segment discs

When using all buccal and lingual fixed appliances and also with thealigner treatment, approximal enamel reduction has become an indispensable part of successful extraction, especially in adult therapy, has become an indispensable part of successful tooth correction.

Komet's DISCtance IPR system includes a range of new stripping discs for the precise achievement of the most common interdental removal thicknesses (0.15 / 0.2 /0.3 mm). The use of rotating diamond discs ensures a high cutting force or removal rate and thus allows an efficient and simple treatment procedure.

Application Instructions:
The stripping disk is used in a handpiece for longfor long, straight shafts.

  • The optimum speed is5,000 rpm.
  • Apply the stripping disk from the occlusal orvestibular and move it in a steady, slow slow movement through the through the contact point. Start with a 0.15 mm thick disc and then successively (0.15 / 0.2 / 0.3 mm) until the desired stock removal is achieved.
  • Use only with sufficient spray cooling and disk protection.
  • For the subsequent approximal enamel polishing (ASP), we recommend commercially available polishing discs.

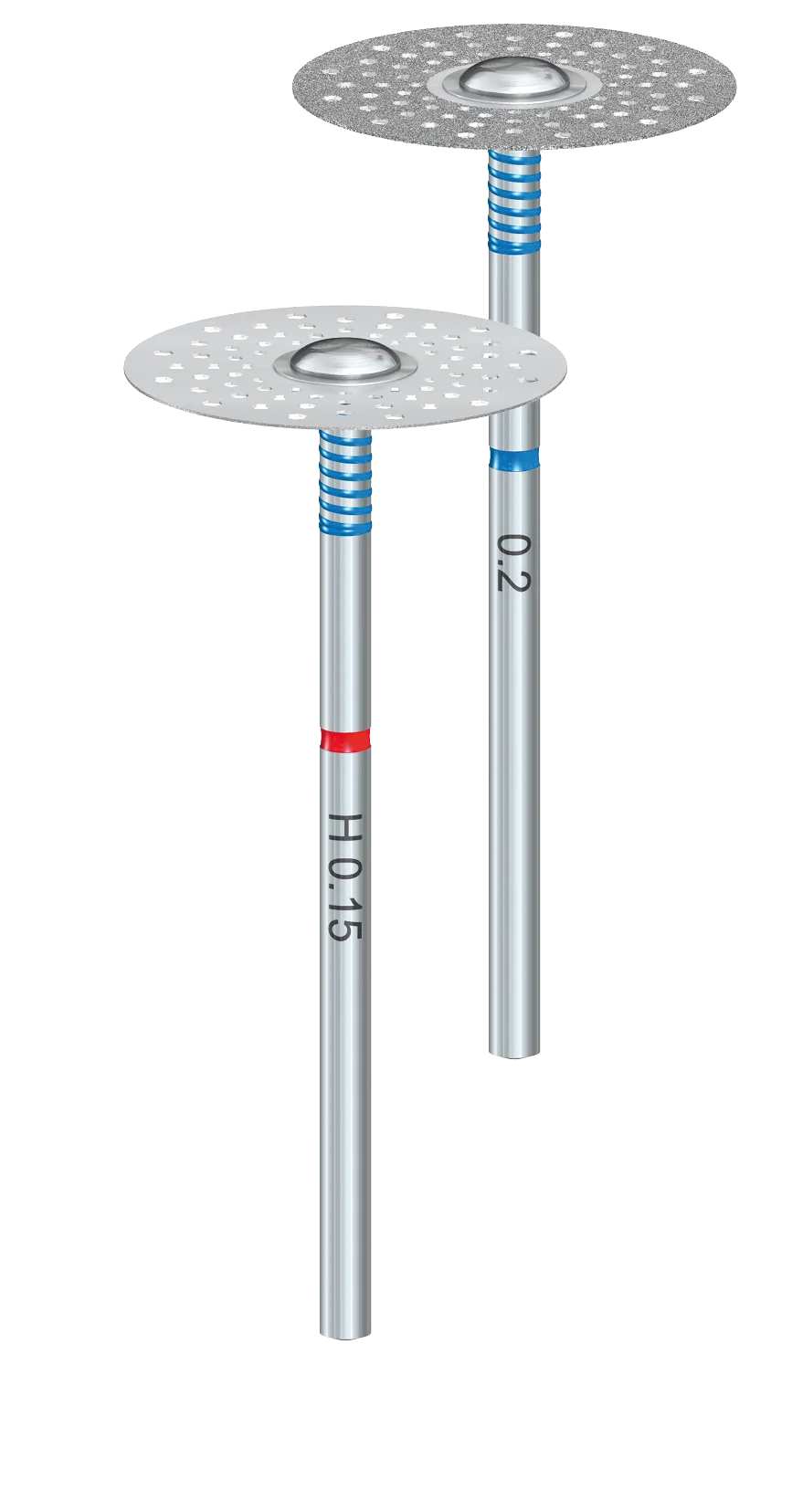

Rotating_Stripping_discs_instruments

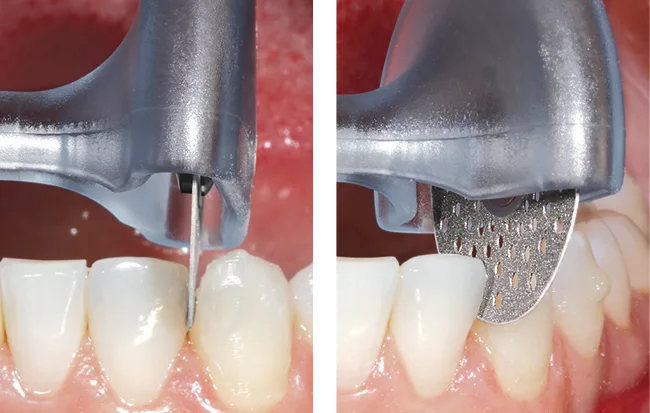

Rotating_Stripping_discs

IPR application image of rotating diamond discs incl. disc protection.

Mechanical stripping - the rotary way: Hero Products

Below you will find our hero products for mechanical interproximal enamel reduction by using rotary instruments. Click on the image for more information about the product.

Mosquito Bur

Mosquito Bur
REF-No. 8392.314.016

Category: Interproximal (diamond) bur

Application: Interapproximal enemal reduction (mechanical)

Bur

Bur
REF.-No 850314012

Category: Interproximal (diamond) bur

Application: Interapproximal enemal reduction (mechanical)

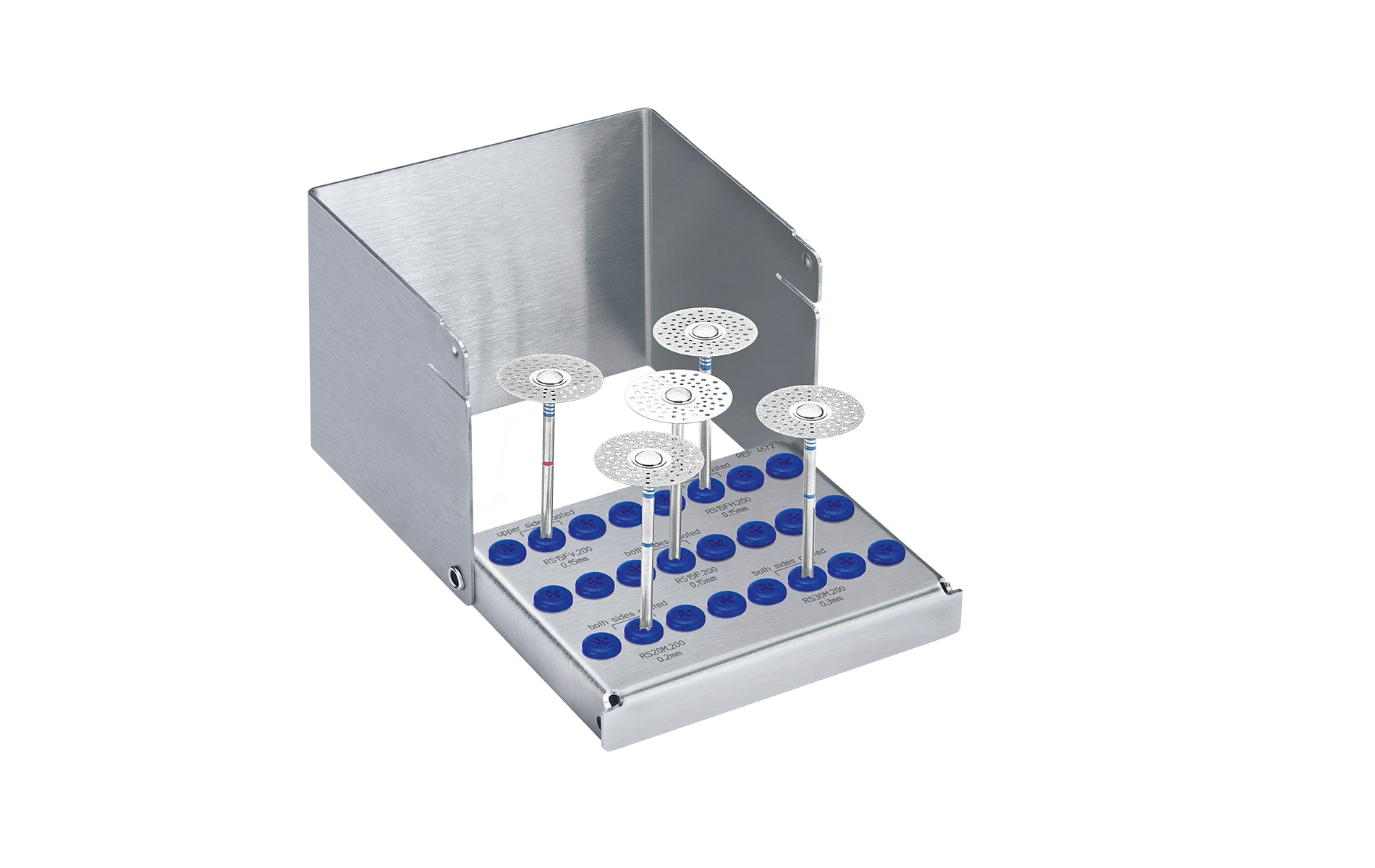

Set 4672

Set 4672

Category: Expert Kit

Application: Interapproximal enemal reduction (mechanical)

Manual stripping:
Diamond and honeycomb strips

If manual handling is preferred for approximal enamel reduction, flexible diamond strips can be used. Likewise, the strips are indispensable for dissolving the initial contact. Honeycomb and diamond strips are available in 3 different grit sizes (medium, fine, extra fine) and 2 widths (2.5 mm and 3.75 mm). They allow shaping and finishing for a smooth, natural surface.

The 4 main advantages of the honeycomb structure:

  • enables efficient removal of the removed material
  • lower heat generation compared to fully coated strips
  • better visual control during work
  • high flexibility

Manual stripping: Komet Products

Below you will find our diamond strips for manual interproximal enamel reduction.

Honeycomb pattern

WS25.000

WS25F.000

WS25EF.000

WS37.000

WS37F.000

WS37EF.000

Diamond pattern

DS25.000

DS25F.000

DS25EF.000

DS35.000

DS35F.000

DS35EF.000
